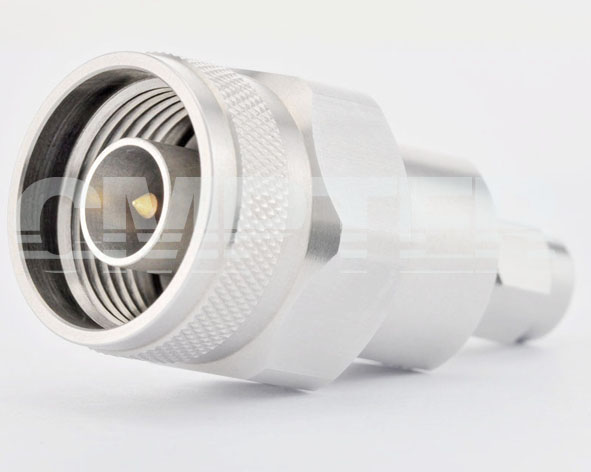

N Male to SMA Male Precision Adapter

PN: P-NM-SMAM-124
P-124-001
PRODUCT OVERVIEW
Interface Type: N-type to SMA
Gender: N male to SMA male
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
  • 3D-Model [STP]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 18 GHz
    VSWR 1.15:1
    Temperature Range: -55 °C ~ +165 °C
    Weight: 40g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Beryllium Copper Alloy Gold-plated (Nickel underplated)
    Body: Stainless Steel (SU303) Passivated
    Insulator: PEI
