RF Coaxial Adapters

1.0mm Female to 1.0mm Female Precision Adapter, DC to 110GHz

PN: P-1.0F-1.0F-368

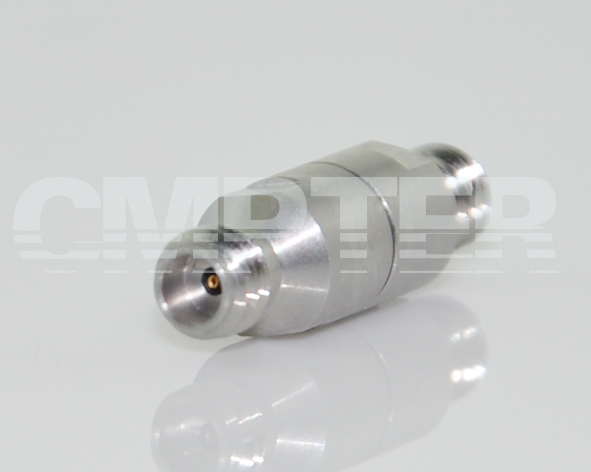

1.0mm female to female adapter
PRODUCT OVERVIEW
Interface Type: 1.0mm
Gender: 1.0 female to 1.0 female
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 110GHz
    Temperature Range: -55 °C ~ +80 °C
    Weight: 3.5g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Beryllium Copper Alloy Gold plating (Nickel underplated)
    Body: Stainless Steel (Su303) Passivated
    Insulator: CPS
