RF Coaxial Adapters

TNC Female to SMA Female, 4 Hole Flange RF adapter, DC to 6GHz

PN: A-TNCF-SMAF-333

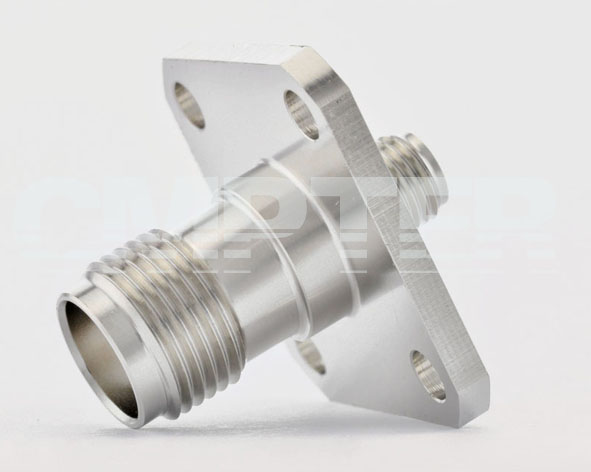

A-333-001

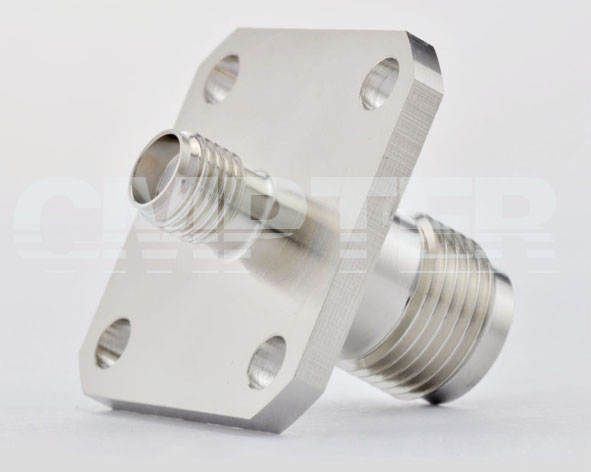

A-333-002
PRODUCT OVERVIEW
Interface Type: TNC to SMA
Gender: TNC female to SMA female
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 6 GHz
    Temperature Range: -65 °C ~ +165 °C
    Weight: 12g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Beryllium Copper Alloy Gold-plated (Nickel underplated)
    Body: Brass Nickel-plated
    Insulator: PTFE
