RF Cable Assembly

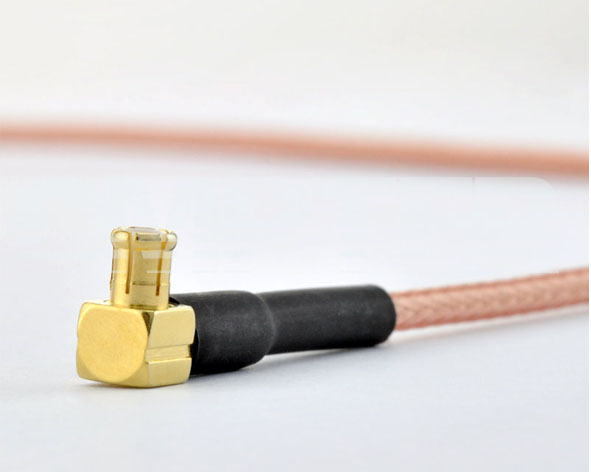

MCX Right Angle Male to MCX Right Angle Male RG316 Cable Assembly, 30cm

PN: CA316-MCXRAM-MCXRAM-30cm-175
CA316-175-01
PRODUCT OVERVIEW
Series: MCX Right Angle Male to MCX Right Angle Male for RG316 cable
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 3 GHz
    Withstanding Voltage: ≥250 V
    Temperature Range: -55 °C ~ +125 °C
    Weight: 7g
    Durability (Matings): MCX Right Angle Male >500
    MCX Right Angle Male >500

    Material Data
    Connectors: MCX Right Angle Male Crimp for LMR100/RG174/RG316 Cable [P/N: 30-13-1M00-005]
    Piece Part Base Material Plating
    Center Contact: Brass Gold-plated (Nickel underplated)
    Body: Brass & Phosphor Bronze Gold-plated (Nickel underplated)
    Insulator: PTFE
