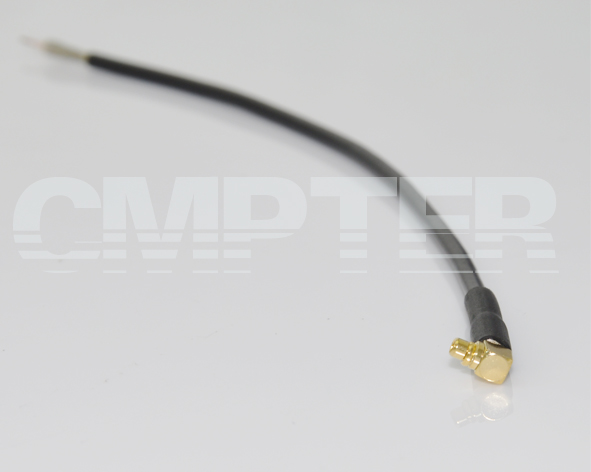

MMCX Right Angle Male to None RG174 Cable Assembly, 170mm
PN: CA174-MMCXRAM-NONE-170mm-617
PRODUCT OVERVIEW
Series: |
MMCX Right Angle Male for RG174 cable |
RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data |
Impedance: |
50Ohm |
Frequency Range: |
0 ~ 3 GHz |
Withstanding Voltage: |
≥335 V |
Temperature Range: |
-55 °C ~ +125 °C |
Weight: |
3g |
Durability (Matings): |
MMCX Right Angle Male >500 |
|
|
Connector: MMCX Right Angle Male Crimp for LMR100/RG174/RG316 Cable [P/N: 31-13-1M00-011] |
Piece Part |
Base Material |
Plating |
Center Contact: |
Brass |
Gold-plated (Nickel underplated) |
Body: |
Brass & Phosphor Bronze |
Gold-plated (Nickel underplated) |
Insulator: |
PTFE |
|
