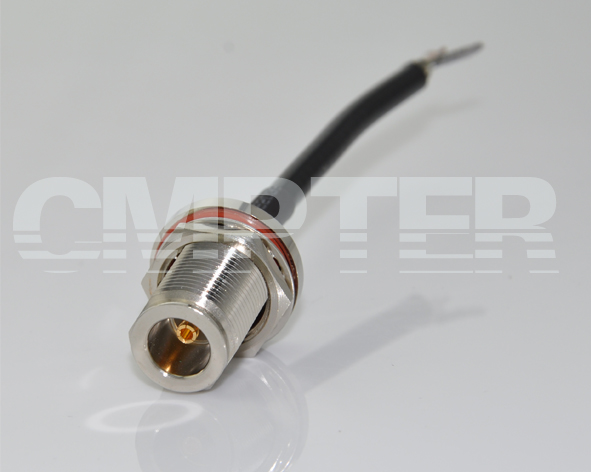

N Waterproof Bulkhead Female to NONE RG58 Cable Assembly, 115mm
PN: CA58-NFBW-NONE-115mm-626
PRODUCT OVERVIEW
Series: |
N bulkhead Female for RG58 cable |
RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data |
Impedance: |
50Ohm |
Frequency Range: |
0 ~ 3 GHz |
Withstanding Voltage: |
≥1000 V |
Temperature Range: |
-20 °C ~ +80 °C |
Weight: |
38g |
Durability (Matings): |
N bulkhead Female >500 |
|
|
Material Data |
Connector 1: N Straight Waterproof Bulkhead Female Crimp for LMR195/RG58 [P/N: 50-02-1D18-028] |
Piece Part |
Base Material |
Plating |
Center Contact: |
Phosphor Bronze |
Gold-plated (Nickel underplated) |
Body: |
Brass |
Nickel Plated |
Washer: |
Phosphor Bronze |
Nickel Plated |
Fastening Nut: |
Brass |
Nickel Plated |
Insulator: |
PTFE |
|
