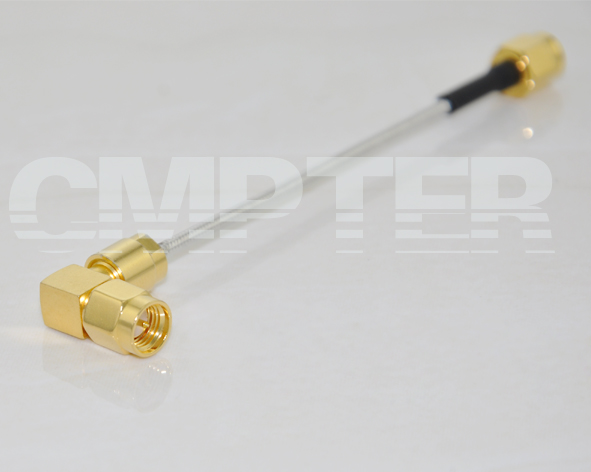

SMA Male to SMA Right Angle Male .086 Hand-Formable Cable Assembly, 10cm
PN: CA086HF-SMAM-SMARAM-10cm-526
PRODUCT OVERVIEW
| Series: |
SMA Male to SMA Right Angle Male for .086 cable, DC to 6GHz |
| RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
| Technical Data |
| Impedance: |
50Ohm |
| Frequency Range: |
0 ~ 6 GHz |
| Withstanding Voltage: |
≥500 V |
| Temperature Range: |
-55 °C ~ +125 °C |
| Weight: |
12g |
| Durability (Matings): |
SMA Male >500 |
| SMA Angle Male >500 |
| |
|
| Material Data |
| Connector 1: SMA Straight Male Solder for RG405/.085/.086 Cable[P/N: 60-03-2M11-002] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Brass |
Gold-plated (Nickel underplated) |
| Body: |
Brass |
Gold-plated (Nickel underplated) |
| Coupling Nut: |
Brass |
Gold-plated (Nickel underplated) |
| Insulator: |
PTFE |
|
| Connector 2: SMA Right Angle Male Solder for RG405/.085/.086 Cable [P/N: 60-13-2M11-066] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Brass |
Gold-plated (Nickel underplated) |
| Body: |
Brass |
Gold-plated (Nickel underplated) |
| Coupling Nut: |
Brass |
Gold-plated (Nickel underplated) |
| Insulator: |
PTFE |
|
