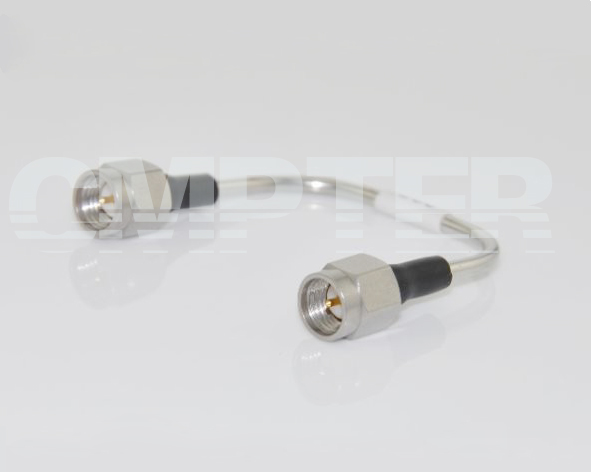

SMA Male to SMA Male CTFD-086 Test Cable Assembly, 90mm, "U" Shape
PN: CA086TD-SMAM-SMAM-90mm-978
PRODUCT OVERVIEW
Series: |
SMA Male to SMA Male for .086 cable, DC to 27GHz |
RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data |
Impedance: |
50Ohm |
Frequency Range: |
0 ~ 27 GHz |
VSWR |
≤1.25 |
Temperature Range: |
-55 °C ~ +125 °C |
Weight: |
18g |
Durability (Matings): |
SMA male >500 |
|
|
Material Data |
Connectors: SMA Straight Male Connectors Solder for RG405/.086 Cable [P/N: 60-03-2M11-106] |
Piece Part |
Base Material |
Plating |
Center Contact: |
Beryllium Copper Alloy |
Gold-plated (Nickel underplated) |
Body: |
Stainless Steel (SU303) |
Passivated |
Insulator: |
PEI |
|
