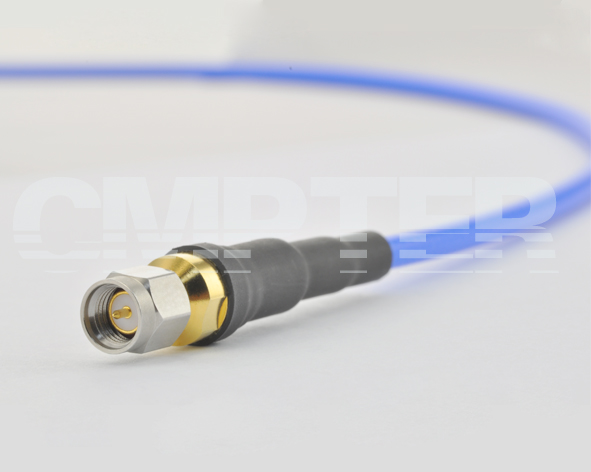

SMA Male to SMA Male Solder Maxflex 141 Cable, 2 Meters, DC to 18GHz
PN: CA141MF-SMAM-SMAM-2M-1645
PRODUCT OVERVIEW
| Series: |
SMA Male to SMA Male for MF141 cable, DC to 18GHz |
| RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
| Technical Data |
| Impedance: |
50Ohm |
| Frequency Range: |
0 ~ 18 GHz |
| VSWR |
≤1.30 |
| Temperature Range: |
-55 °C ~ +125 °C |
| Weight: |
250g |
| Durability (Matings): |
SMA male >500 |
| |
|
| Material Data |
| Connectors: SMA Straight Male Solder for Maxflex 141 Cable [P/N: 60-03-2M65-186] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Beryllium Copper Alloy |
Gold-plated (Nickel underplated) |
| Body: |
Brass |
Gold-plated (Nickel underplated) |
| Coupling Nut: |
Stainless steel |
Passivated |
| Insulator: |
PTFE |
|
