RF coaxial connectors

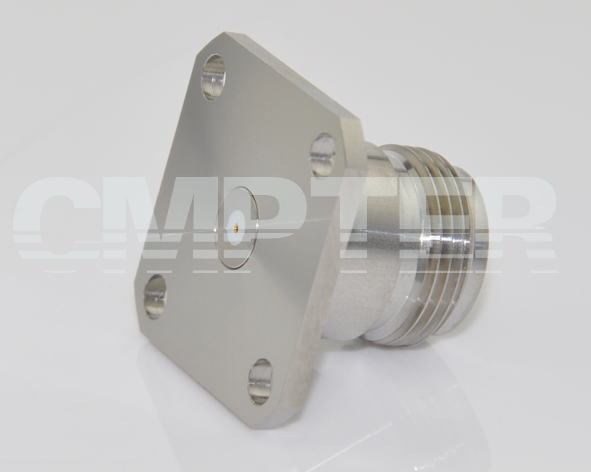

N Female 4 Hole Flange, Accept Pin

PN: 50-02-9F5-058
50-02-9F5-058-2
PRODUCT OVERVIEW
Interface Type: N-type
Gender: Female
RoHS Certificate: Compliant
Interface Standards: MIL-STD-348A

DOWNLOADS
  • Customer Drawing [PDF]
  • 3D-Model [STP]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 18 GHz
    Insulation Resistance: ≥5000MΩ
    Contact Resistance -centre contact ≤ 1mΩ
    -outer contact ≤ 0.2mΩ
    VSWR: 1.15:1
    Temperature Range: -65 °C ~ +165 °C
    Weight: 27g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Beryllium Copper Alloy Gold plating (Nickel underplated)
    Body: Stainless Steel(SU303) Passivated
    Insulator: PTFE & PEI
