RF coaxial connectors

MMCX Female PCB Mount connector, Blund Post

PN: 31-02-5L2-019

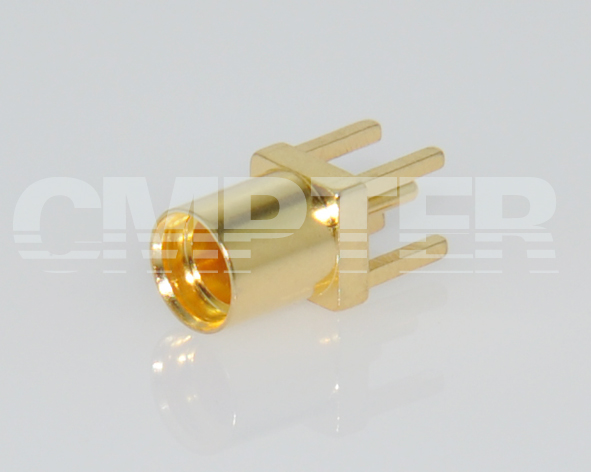

31-02-5L2-019-02
31-02-5L2-019-03
PRODUCT OVERVIEW
Interface Type: MMCX
Gender: Female
RoHS Certificate: Compliant
Interface Standards: BS-EN-122340

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 6 GHz
    Insulation Resistance: ≥1000MΩ
    Temperature Range: -55 °C ~ +165 °C
    Weight: 0.5g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Phosphor Bronze Gold plating (Nickel underplated)
    Body: Brass Gold plating (Nickel underplated)
    Insulator: PTFE
