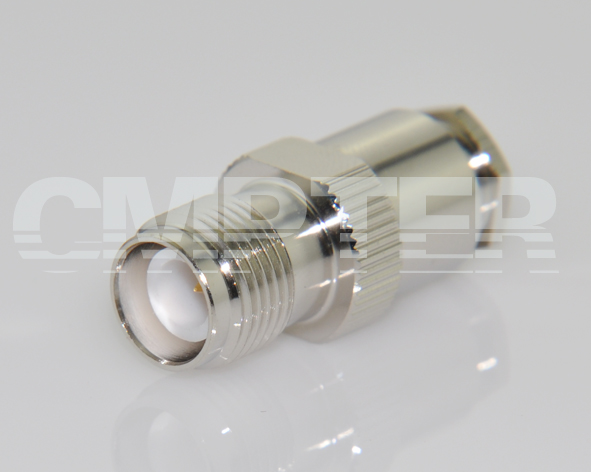

RP TNC Straight Female Clamp for RG142/RG223/RG58/LMR195 Cable

PN: 81-05-4M21-007
81-05-4M21-007-02
PRODUCT OVERVIEW
Interface Type: RPTNC
Gender: Female
RoHS Certificate: Compliant
Interface Standards: IEC-60169

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 3GHz
Insulation Resistance: ≥5000MΩ
Withstanding Voltage: 1000V
Temperature Range: -65 °C ~ +165 °C
Weight: 15g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Phosohor Bronze Gold plating (Nickel underplated)
Body: Brass Nickel plating
Insulator: PTFE
Gasket MVQ (Silicone rubber)
