PN: CA3500-2.4M-2.4F-1M-1865

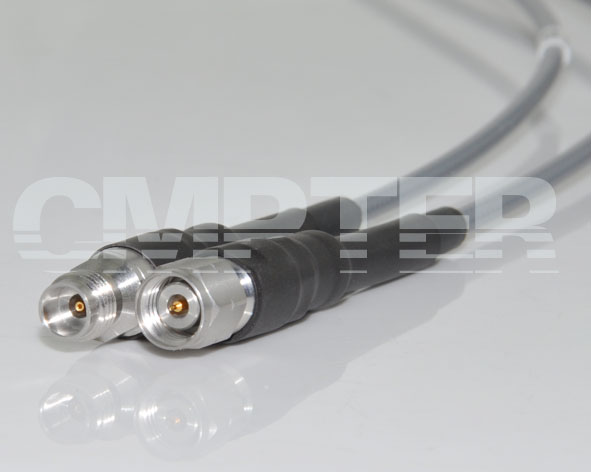

Test Cable Assembly, 2.4mm Straight Male to 2.4mm Straight Female, Gore CXN3500 Cable, 1 Meters
CA3500-2
PRODUCT OVERVIEW
Series: 2.4mm male to 2.4mm Female for Gore3500 cable, DC to 50GHz, Test cable
RoHS: Compliant

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 50 GHz
VSWR ≤1.25
Temperature Range: -55 °C ~ +125 °C
Weight: 75g
Durability (Matings): 2.4mm male >500
2.4mm female >500

Material Data
Connector 1: 2.4mm Straight Male Solder for Gore CXN3500 Cable  [97-03-2M53-039]
Piece Part Base Material Plating
Center Contact: Beryllium Copper Alloy Gold-plated (Nickel underplated)
Body: Stainless Steel (SU303) Passivated
Insulator: PEI


Connector 2: 2.4mm Straight Female Solder for Gore CXN3500 Cable  [97-02-2M53-040]
Piece Part Base Material Plating
Center Contact: Beryllium Copper Alloy Gold-plated (Nickel underplated)
Body: Stainless Steel (SU303) Passivated
Insulator: PEI
