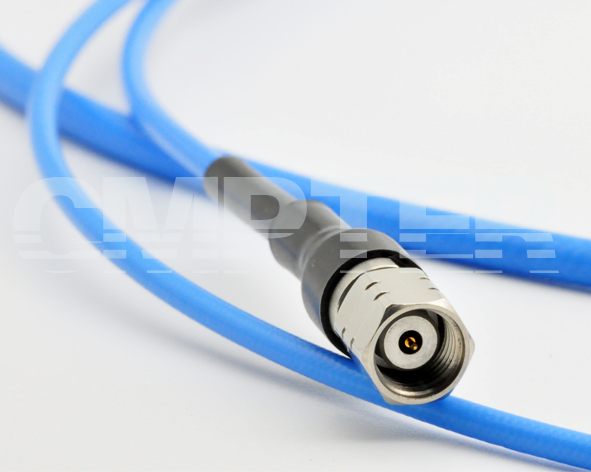

1.85mm Male to 1.85mm Male for test CTFA-270 Cable, DC to 67GHz
PN: CA270TA-1.85M-1.85M-1M-3693
PRODUCT OVERVIEW
| Series: |
1.85mm male to 1.85mm Female connector for CTFA270 phase match cable, DC to 67GHz, Test cable |
| RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
| Technical Data |
| Impedance: |
50Ohm |
| Frequency Range: |
0 ~ 67 GHz |
| VSWR |
≤1.35 |
| Temperature Range: |
-55 °C ~ +125 °C |
| Weight: |
80g |
| Durability (Matings): |
1.85mm male >500 |
| |
|
| Material Data |
| Connector 1: 1.85mm Male connector Solder for CTFA-270 phasse match Cable [98-03-2M79-030] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Beryllium Copper Alloy |
Gold-plated (Nickel underplated) |
| Body: |
Stainless Steel (SU303) |
Passivated |
| Insulator: |
PEI |
|
