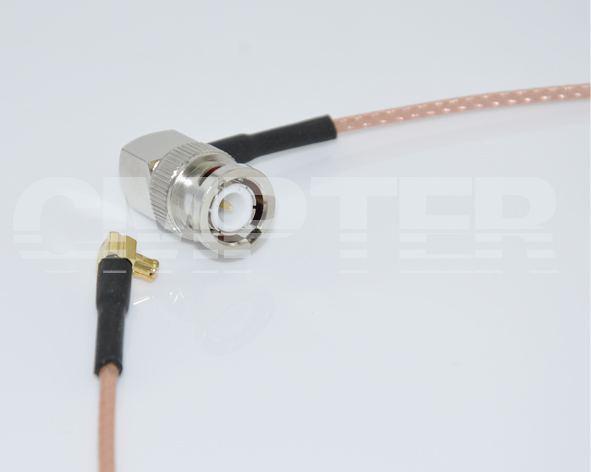

BNC Right Angle Male to MCX Right Angle Male RG316 Cable Assembly, Cable Length
PN: CA316-BNCRAM-MCXRAM-75cm-295
PRODUCT OVERVIEW
| Series: |
BNC Right Angle Male to MCX Right Angle Male for RG316 cable |
| RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
| Technical Data |
| Impedance: |
50Ohm |
| Frequency Range: |
0 ~ 3 GHz |
| Withstanding Voltage: |
≥250 V |
| Temperature Range: |
-55 °C ~ +125 °C |
| Weight: |
28g |
| Durability (Matings): |
BNC Right Angle Male >500 |
| MCX Right Angle Male >500 |
| |
|
| Material Data |
| Connector 1: BNC Right Angle Male Crimp for LMR100/RG174/RG316 Cable [P/N: 10-13-1M00-015] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Brass |
Gold-plated (Nickel underplated) |
| Body: |
Brass |
Nickel plated |
| Insulator: |
PTFE |
|
| Connector 2: MCX Right Angle Male Crimp for LMR100/RG174/RG316 Cable [P/N: 30-13-1M00-005] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Brass |
Gold-plated (Nickel underplated) |
| Body: |
Brass & Phosphor Bronze |
Gold-plated (Nickel underplated) |
| Insulator: |
PTFE |
|
