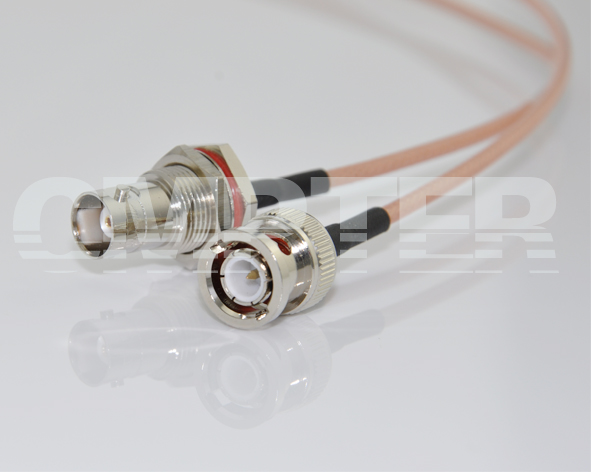

BNC Male to BNC Waterproof Bulkhead Female RG316D Cable Assembly, 1 meter
PN: CA316D-BNCM-BNCFBW-1M-689
PRODUCT OVERVIEW
| Series: |
BNC Male to BNC bulkhead Female for RG316D cable |
| RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
| Technical Data |
| Impedance: |
50Ohm |
| Frequency Range: |
0 ~ 1 GHz |
| Withstanding Voltage: |
≥250 V |
| Temperature Range: |
-55 °C ~ +125 °C |
| Weight: |
50g |
| Durability (Matings): |
BNC Male >500 |
| BNC Bulkhead Female >500 |
| |
|
| Material Data |
| Connector 1: BNC Straight Male Crimp for RG316D Cable [P/N: 10-03-1M04-065] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Brass |
Gold-plated (Nickel underplated) |
| Body: |
Brass |
Nickel plated |
| Coupling Nut: |
Brass |
Nickel Plated |
| Insulator: |
PTFE |
|
| Connector 2: BNC Straight Waterproof Bulkhead FemaleCrimp for RG316D Cable [P/N: 10-02-1D04-066 |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Phosphor Brone |
Gold-plated (Nickel underplated) |
| Body: |
Brass |
Nickel plated |
| Fastening Nut: |
Brass |
Nickel Plated |
| Insulator: |
PTFE |
|
| Gasket: |
Silicone Rubber |
|
