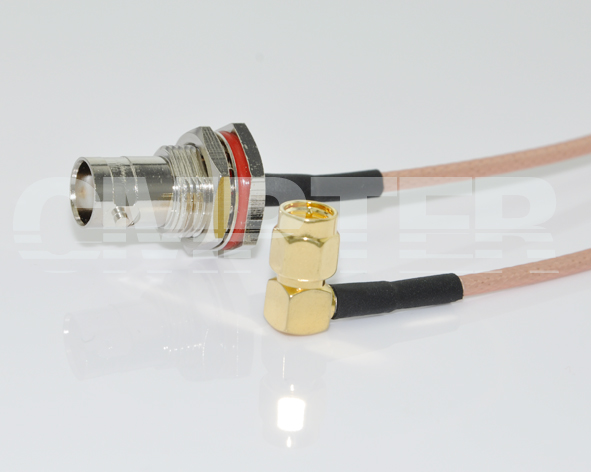

SMA Right Angle Male to BNC Waterproof Bulkhead Female RG316D Cable Assembly, 80
PN: CA316D-SMARAM-BNCFBW-80cm-702
PRODUCT OVERVIEW
| Series: |
SMA Right Angle Male to BNC Waterproof bulkhead Female for RG316D cable |
| RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
| Technical Data |
| Impedance: |
50Ohm |
| Frequency Range: |
0 ~ 1 GHz |
| Withstanding Voltage: |
≥335 V |
| Temperature Range: |
-55 °C ~ +125 °C |
| Weight: |
31g |
| Durability (Matings): |
SMA Male >500 |
| BNC Bulkhead Female >500 |
| |
|
| Material Data |
| Connector 1: SMA Right Angle Male Crimp for RG316D Cable [P/N: 60-13-1M04-151] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Brass |
Gold-plated (Nickel underplated) |
| Body: |
Brass |
Gold-plated (Nickel underplated) |
| Coulping Nut: |
Brass |
Gold-plated (Nickel underplated) |
| Insulator: |
PTFE |
|
| Connector 2: BNC Right Angle Male Crimp for RG316D Cable [P/N: 10-13-1M04-067] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Brass |
Gold-plated (Nickel underplated) |
| Body: |
Brass |
Nickel Plated |
| Insulator: |
PTFE |
|
