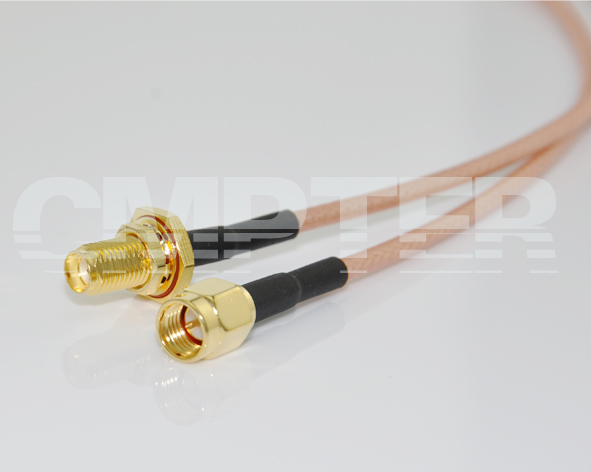

SMA Male to SMA Waterproof Bulkhead Female RG316D Cable Assembly, 1 Meter
PN: CA316D-SMAM-SMAFBW-1M-688
PRODUCT OVERVIEW
Series: |
SMA Male to SMA Bulkhead Female for RG316D cable |
RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data |
Impedance: |
50Ohm |
Frequency Range: |
0 ~ 1 GHz |
Withstanding Voltage: |
≥335 V |
Temperature Range: |
-55 °C ~ +125 °C |
Weight: |
31g |
Durability (Matings): |
SMA Male >500 |
SMA Bulkhead Female >500 |
|
|
Material Data |
Connector 1: SMA Straight Male Crimp for RG316D Cable [P/N: 60-03-1M04-194] |
Piece Part |
Base Material |
Plating |
Center Contact: |
Brass |
Gold-plated (Nickel underplated) |
Body: |
Brass |
Gold-plated (Nickel underplated) |
Coulping Nut: |
Brass |
Gold-plated (Nickel underplated) |
Insulator: |
PTFE |
|
Connector 2: SMA Straight Waterproof Bulkhead Female Crimp for RG316D Cable [P/N: 60-02-1B04-193] |
Piece Part |
Base Material |
Plating |
Center Contact: |
Beryllium Copper Alloy |
Gold-plated (Nickel underplated) |
Body: |
Brass |
Gold-plated (Nickel underplated) |
Fastening Nut: |
Brass |
Gold-plated (Nickel underplated) |
Insulator: |
PTFE |
|
