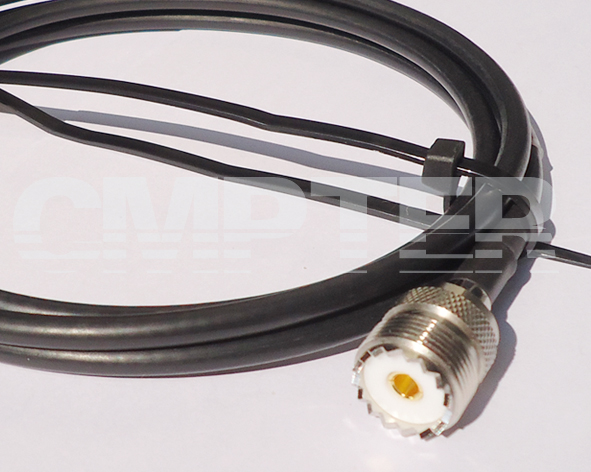

BNC Male to UHF Femal RG58 Cable Assembly, 1.5 Meters
PRODUCT OVERVIEW
Series: |
BNC Male to UHF Female for RG58 cable |
RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data |
Impedance: |
50Ohm |
Frequency Range: |
0 ~ 500 MHz |
Withstanding Voltage: |
≥750 V |
Temperature Range: |
-20 °C ~ +80 °C |
Weight: |
87g |
Durability (Matings): |
BNC Male >500 |
UHF Female >500 |
|
|
Material Data |
Connector 1: BNC Straight Male Crimp for LMR195/RG58 Cable [P/N: 10-03-1M18-003] |
Piece Part |
Base Material |
Plating |
Center Contact: |
Brass |
Gold-plated (Nickel underplated) |
Body: |
Brass |
Nickel plated |
Coupling Nut: |
Brass |
Nickel Plated |
Insulator: |
PTFE |
|
Connector 2: UHF Straight Female Crimp for LMR195/RG58 Cable [P/N: 90-02-1M18-005] |
Piece Part |
Base Material |
Plating |
Center Contact: |
Phosphor Bronze |
Gold-plated (Nickel underplated) |
Body: |
Brass |
Nickel plated |
Fastening Nut: |
Brass |
Nickel Plated |
Insulator: |
PTFE |
|
