RF Cable Assembly

SMA Male to SMA Male RG178 Cable Assembly, 60cm

PN: CA178-SMAM-SMAM-60cm-304

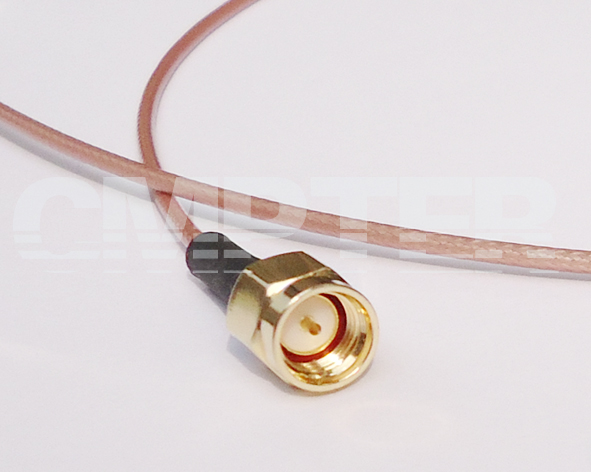

CA178-SMAM-SMAM-60cm-304-02
PRODUCT OVERVIEW
Series: SMA Male for RG178 cable
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 3 GHz
    Withstanding Voltage: ≥500 V
    Temperature Range: -55 °C ~ +155 °C
    Weight: 13g
    Durability (Matings): SMA Male >500

    Material Data
    Connectors: SMA Male Straight Crimp for RG178 Cable [P/N: 60-03-1M12-008-1]
    Piece Part Base Material Plating
    Center Contact: Beryllium Copper Alloy Gold-plated (Nickel underplated)
    Body: Brass Gold-plated (Nickel underplated)
    Coupling Nut: Brass Gold-plated (Nickel underplated)
    Insulator: PTFE
