PN: CA178-SMAM-UFL-20cm-368

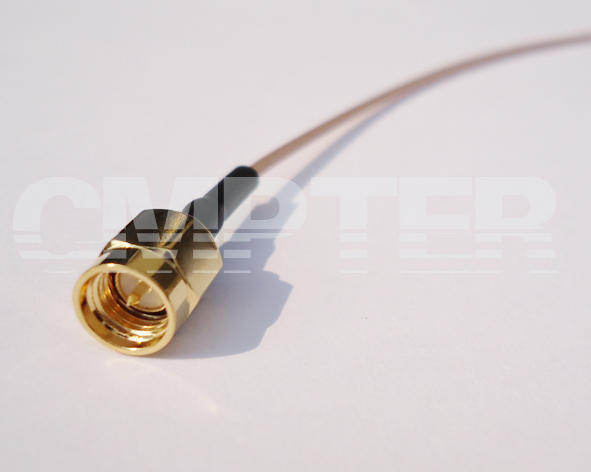

Cable Assembly, SMA Straight Male to UFL/MHF Right Angle Plug, RG178 Cable, 20cm
CA178-SMAM-UFL-20cm-368-02
PRODUCT OVERVIEW
Series: SMA Male to U.FL forRG178 cable
RoHS: Compliant

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 3 GHz
Withstanding Voltage: ≥250 V
Temperature Range: -50 °C ~ +125 °C
Weight: 7g
Durability (Matings): SMA Male >500
U.FL connector >30

Material Data
Connector 1: RP SMA Male Straight Crimp for RG178 Cable [P/N: 61-03-1M12-020-1]
Piece Part Base Material Plating
Center Contact: Brass Gold-plated (Nickel underplated)
Body: Brass Nickel Plated
Insulator: PTFE

Connector 2: U.FL/MHF Right Angle Plug
