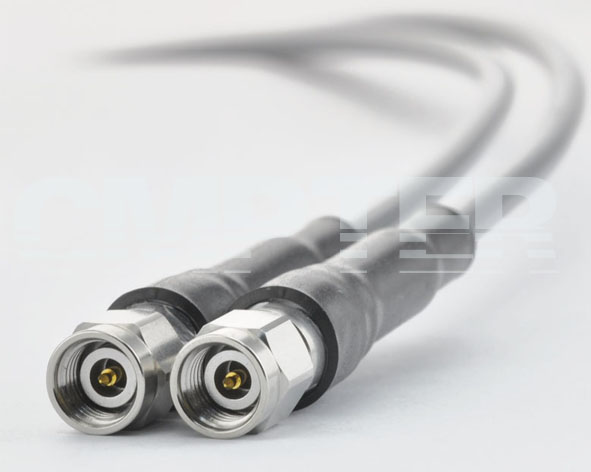

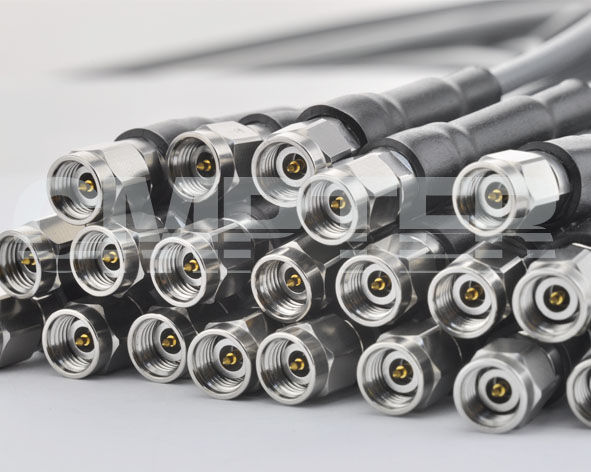

2.92mm Male to 2.92mm Male Clamp CTFB-360 Cable
PN: CA360TB-2.92M-2.92M-XXX-XXX- 7
PRODUCT OVERVIEW
| Series: |
2.92mm Male to 2.92mm Mlale for 360TB test cable, DC to 40GHz |
| RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
| Technical Data |
| Impedance: |
50Ohm |
| Frequency Range: |
0 ~ 40 GHz |
| VSWR |
≤1.30 |
| Temperature Range: |
-55 °C ~ +125 °C |
| Weight: |
50g |
| Durability (Matings): |
2.92mm male >500 |
| |
|
| Material Data |
| Connector1 : 2.92mm Straight Male Solder for CTFB-360 Cable [P/N: 96-03-2M67-047] |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Beryllium Copper Alloy |
Gold-plated (Nickel underplated) |
| Body: |
Stainless Steel (SU303) |
Passivated |
| Insulator: |
PEI |
|
