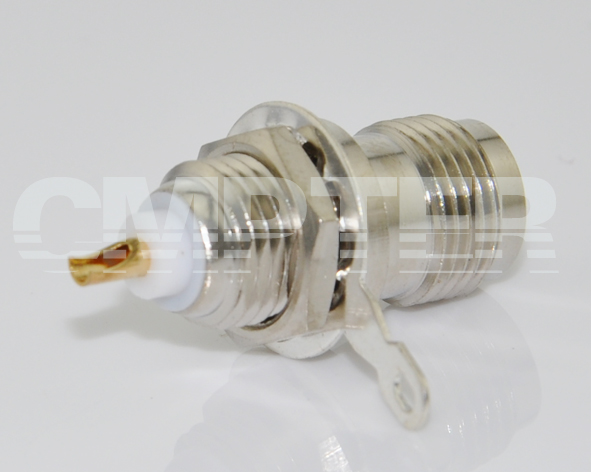

TNC Female Bulkhead Connector, Receptacle with Solder Cup

PN: 80-02-8A1-045
80-02-8A1-045-02
PRODUCT OVERVIEW
Interface Type: TNC
Gender: Female
RoHS Certificate: Compliant
Interface Standards: IEC-60169

DOWNLOADS
PRODUCT SPECIFICATIONS
Technical Data
Impedance: 50Ohm
Frequency Range: ~ 6GHz
Insulation Resistance: ≥5000MΩ
Withstanding Voltage: 1000V
Temperature Range: -65 °C ~ +165 °C
Weight: 8g
Durability (Matings): >500

Material Data
Piece Part Base Material Plating
Center Contact: Phosohor Bronze Gold plating (Nickel underplated)
Body: Brass Nickel plating
Insulator: PTFE
Gasket MVQ (Silicone rubber)
