RF Coaxial Adapters

RF Adapter, BNC Male to BNC Bulkhead Female DC to 4GHz

PN: A-BNCM-BNCF-358

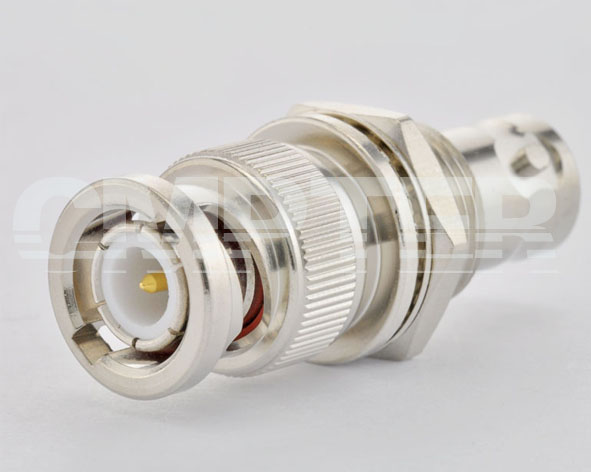

A-358-001

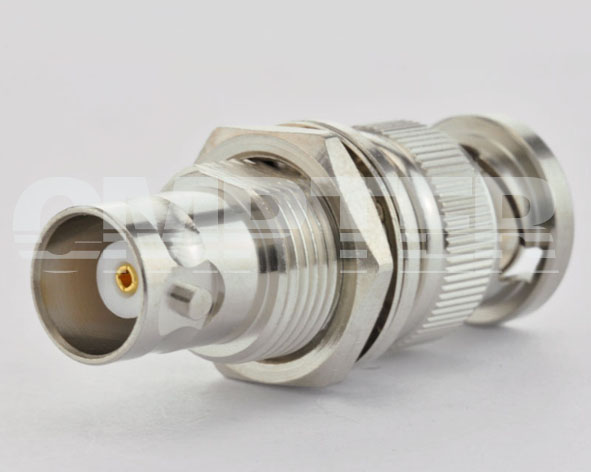

A-358-002
PRODUCT OVERVIEW
Interface Type: BNC
Gender: BNC male to BNC female
RoHS: Compliant

DOWNLOADS
  • Customer Drawing [PDF]
    • PRODUCT SPECIFICATIONS
    Technical Data
    Impedance: 50Ohm
    Frequency Range: 0 ~ 4GHz
    Temperature Range: -65 °C ~ +165 °C
    Weight: 17g
    Durability (Matings): >500

    Material Data
    Piece Part Base Material Plating
    Center Contact: Phosphor Bronze Gold plating (Nickel underplated)
    Body: Brass Nickel Plated
    Insulator: PTFE
