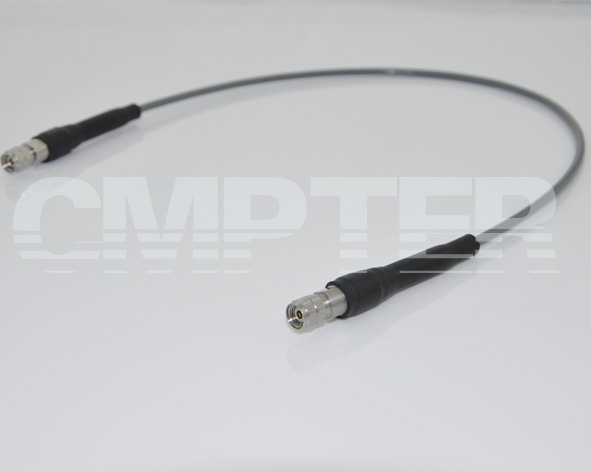

2.4mm Male to 2.4mm Male Gore CXN3507 Test Cable Assembly, 50cm
PN: CA3507-2.4M-2.4M-50cm-517
PRODUCT OVERVIEW
| Series: |
2.4mm male to 2.4mm Female for Gore3507 cable, DC to 40GHz, Test cable |
| RoHS: |
Compliant |
DOWNLOADS
PRODUCT SPECIFICATIONS
| Technical Data |
| Impedance: |
50Ohm |
| Frequency Range: |
0 ~ 40 GHz |
| VSWR |
≤1.25 |
| Temperature Range: |
-55 °C ~ +125 °C |
| Weight: |
47g |
| Durability (Matings): |
2.4mm male >500 |
| 2.4mm male >500 |
| |
|
| Material Data |
| Piece Part |
Base Material |
Plating |
| Center Contact: |
Beryllium Copper Alloy |
Gold-plated (Nickel underplated) |
| Body: |
Stainless Steel (SU303) |
Passivated |
| Insulator: |
PEI |
|
